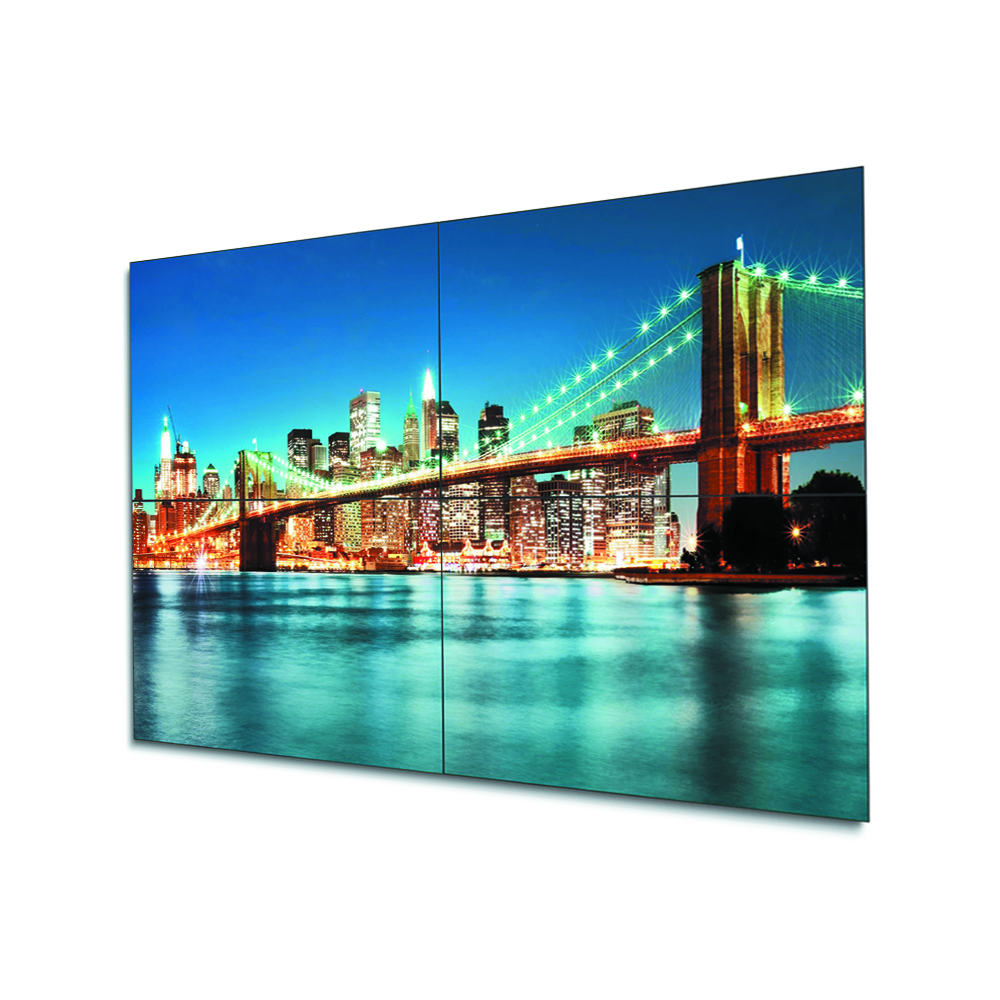

Media Display Splicing Lcd Video Wall Screens Indoor Samsung Panel 46 Inch
Advantage
1. Adopt Unique DID from Samsung. The revolutionary breakthroughs lie in its special character like high brightness, high contrast ratio, ultra-durability and ultra-narrow edge. Usually the brightness of common TV and computer is 250- 300nits while lcd video wall can reach to 700nits, which is twice higher.
2. Brilliant image processing technology. It can clearly reproduce low-pixel image in full-HD display screen
For example, eliminate flicker, scolor enhancement, automatic skin color correction etc.
3. Better color saturation. It can not only calibrate the color of static picture, but also the dynamic picture, which ensure the accuracy and stability of picture output.
4. In the usage of patterned vertical alignment make the viewing angle become wider to 178 degree.
5. Better reliability. Compared with usual moniter, lcd video wall is designed to support continuous use day and night, in 7*24 hours.
6. As a true flat panel display. lcd video wall has no large curvature and distortion when displaying image.
7. Ultar thin design brings audience perfect visual enjoyment.
8. LCD has uniform brightness, high quality and absolutely no flicker.
9. DID LCD splicing walls can be chosen arbitrarily (row (m)*column (n), this means the combination of the wall shape. The screen size can also be chosen to meet the different needs in multiple occasions.
10. Flexible functions optional. According to different users' requirments, we carry out personalized design. Single-screen display, full-screen display, arbitrary combination display, image roaming, image overlay and other functions can be selected.
11. Advanced screen parameter debugging function ensures the color consistency and brightness uniformity of the whole splicing screen, avoiding uneven visual effect.
12. LCD DID LCD splicing wall is a new generation of environmentally friendly and healthy splicing wall, which has less heat, no radiation, no flicker, no eye damage, no harmful substances (such as lead, mercury, cadmium and chromium).
13. The life of LCD backlight used in ordinary NB, PC and TV ranges from 10,000 to 30,000 hours, while that of DID LCD backlight can reach more than 60,000 hours.
14. LCD technology does not have any consumable equipment that needs to be replaced regularly, taht means maintenance costs are extremely low.
Specification
| Specification |
| Size | 46 inch |
| Panel brand | Samsung |
| Model No. | HBY-PJ460P |
| Panel Size | 46" DID LCD module |
| Backlight Type | LED |
| Display Area | 1018.08(H)x572.67(v)mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920X1080 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 500cd/m2,700cd/m2 |
| Contrast | 3500:1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | 8 ms |
| Life Span | >60,000 hours |
| Bezel width(between screens) | 1.7mm/3.5mm/5.5mm |
| Product Weight | 20KG |
| Interfaces (option 1- without 4K input) |
| Input | 1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45) |
| Output | 2*RS232(RJ45),2*BNC (PAL/NTSC) |
| Interfaces (option 2- With 4K input) |
| Input | 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA / WXGA),2*RS232(RJ45) |
| Output | 1* DP (Display port),2*RS232(RJ45) |
| Power |
| Power Supply | AC100V~240V 50/60Hz |
| Maximum Power Consumption | 180W |
| Standby Power Consumption | <1W |
| Working Environment |
| Working Temperature | 0℃~50℃ |
| Working Humidity | 10%-90%RH |
