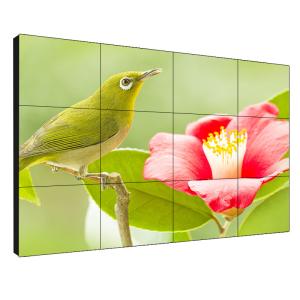

Ultra Narrow Bezel Digital Signage Video Wall 55 Inch 0.63*0.63 Pixel Pitch

Product Categories

Shenzhen Unique Display Technology Co.,Ltd

Contact Now

Name: Ultra Narrow Bezel Digital Signage Video Wall 55 Inch 063063 Pixel Pitch
Brand: HBONY
Price: 1 USD

Brand Name : HBONY

Model Number : HBY-PJ550P

Certification : ISO9001, FCC, CE, CCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 4pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000pcs/month

Delivery Time : within 1 week

Packaging Details : inner pack:foam with kraft carton; outpack: wooden case

Type : TFT

Application : Indoor

Seam : 1.7mm

Pixel pitch : 0.63*0.63

Resolution : 1920*1080

Contrast Ratio : 4500:1

Brightness : 500/700nits

Response time : <8ms

Service time : >60000(hrs)

Input Voltage : AC 110V-240V

Contact Now

55 inch specifications
Model No	HBY-PJ550P
Panel size	55 inch
Max resolution	3840*2160
Active screen area	1209.6*680.4
Panel Technology	S-PVA TFT with direct white LED backlights
Aspect Ratio	16:09
Color	8Bit,16.7M
Viewing Angle	178/178
Response Time	<8ms
Life(hrs)	>60000(hrs)
Input and Output
DVI	1
HDMI	1
D15-RGB Input(VGA)	1
RJ45	4
DP	2(2*DP)
Composit video input	2(2*BNC)
Split screen	Support picture in picture(PIP/POP/PAP)
Power
Power supply	AC100V-240V
Max power consumption	220W
Standby consumption	<0.5W
Temperature
Working temperature	0℃-50℃
Working Humidity	10%-90%
Dimension	1211.04mmH682.34mmV117.8mmD
Weight	30kg
Video wall controller(bulit-in each screen)
Model No	HBY-PJ550P
Input	CVBS	1*BNC port,support PAL/NTSC all formats
	DVI	1*DVI-I port,support SVGA/XGA/WUXG
	VGA	1*D15 port, support SVGA/XGA/WXGA
	HDMI	5*BNC ports, support SVGA/XGA/WXGA
Output	LVDS	Support signal or double LVDs output, and WUXGA(3840*2160) display

	CVBS	support PAL/NTSC all formats
	DVI	1*DVI-I port,support SVGA/XGA/WUXG

Ultra Narrow Bezel Digital Signage Video Wall 55 Inch 0.63*0.63 Pixel Pitch
